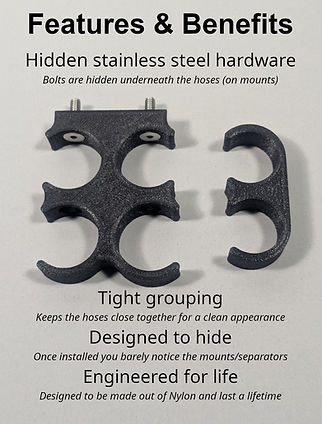

Available for standard A/C and Heater lines as well as for E-Z Clip A/C Line. A simple solution to clean A/C and Heater line routing! Since the lines simply clip into the separators it is easy to remove the lines without having to unbolt anything. Lines are grouped together with approximately a 5/16" gap between the hoses. Mounts use stainless steel hardware that hides underneath the hoses for a clean look.

We now offer Hard Line Mounts and Separators! Spaced tight with a 5/16" gap or spaced to match our A/C or E-Z Clip mounts and separators.

A/C & Heater Line Mounts & Separators

A/C Hose

Hose Size

#10

Fraction

47/64"

57/64"

31/32"

Decimal

0.734"

0.890"

0.969"

Metric

18.644 mm

22.606 mm

24.613 mm

EZ-Clip/Reduced Barrier Hose

Hose Size

#10

Fraction

37/64"

45/64"

25/32"

Decimal

0.578"

0.700"

0.781"

Metric

14.681 mm

17.780 mm

19.837 mm

Heater Hose

Hose Size

1/2"

5/8"

3/4"

Fraction

49/64"

29/32"

1-1/64"

Decimal

0.767"

0.906"

1.015"

Metric

19.470 mm

23.012 mm

25.781 mm

*Sizes listed are the outside diameter of the hoses. Our parts are slightly undersized to hold the hoses tight. There are some size variations between hose manufacturers. We recommend measuring your hoses before placing an order.
